New 2020 Winnebago Horizon 40A

The Sea of Sameness is Over! The New Look of Luxury and Performance! 3 Years/100k Mile Warranty!
Virtual Tour Carefree Diesel Days

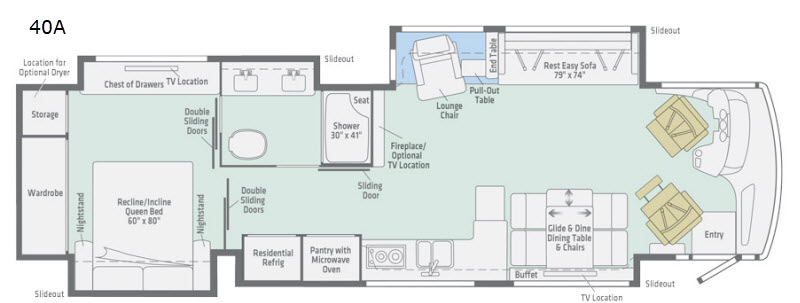

2020 40A Features and Options

Confident and bold, the new Winnebago Horizon brings a fresh look to the diesel pusher category, with the performance to back it up. The Horizon features a refreshingly clean design, highlighted by LED halo lighting and luxurious Villa furnishings, as well as a spacious master bedroom with a walkaround recline and incline king bed, abundant interior storage, full galley with residential style refrigerator, and the versatile Glide & Dine dining table and chairs that let you configure your dining area to suit your needs. Every Horizon is built on our turbo diesel powered Maxum Chassis, so you can count on the performance, ride, handling, and storage of 183 cubic feet in the exterior basement to match the Horizon’s elegant good looks. Drive, arrive, and thrive in style: the new Horizon is calling.

Call us to schedule your LIVE Video Appointment today to see this RV LIVE in the comfort of your home!

This coach is powered by the tried and true Freightliner Maxum chassis with a Cummins ISL powertrain:

1.  Cummins ISL 8.9L turbo charged diesel engine

2.  1,250 lb ft of torque or power

3.  450 hp

4.  Allison 6 speed automatic 3000 MH transmission with grade braking

5.  Air brakes with ABS

6.  Engine exhaust brake

7.  QuickConnect air connection with manual shut off

8.  Automatic hydraulic leveling jacks

9.  Stylized aluminum wheels

10.  Front air suspension

11.  V Ride rear axle suspension

12.  Trailering package, 15,000 lb. drawbar with 1,500 lb. maximum vertical tongue weight

13.  Chassis ignition slide room lock system

Includes the following factory installed options:

1.  Infotainment Center with Rand McNally RV GPS featuring a 10.4 inch touch screen color monitor with split screen function, second monitor, Rand McNally RV GPS safe and easy routing, amenities and tools, trips and content, turn by turn voice guidance, AM FM stereo, steering wheel and handheld remotes, SiriusXM satellite radio with a 90 day trial subscription, compass, outside temperature, iPod and iPhone audio integration, Bluetooth hands free connectivity, color rearview camera, sideview cameras, and house mode feature which displays all 3 cameras and audio of radio screen to any TV in or on the coach for using SiriusXM or trip planning on any HDTV

2.  JBL 11 speaker Premium Cab Sound System

3.  Winegard Razar stationary automatic local off air HDTV antenna

4.  Stacked washer and dryer, separate units for maximum capacity

5.  Central vacuum system

6.  Dishwasher

7.  Ground effects lighting package with smartphone and tablet app to adjust to outdoor illumination in static colors, or to change to meet that of certain colors or will move in relation to exterior music

8.  Pneumatically adjustable powered king bed with Ideal Rest Natural Reserve digital comfort control mattress with remotes

9.  Tire pressure monitoring system, integrated into the Infotainment center and expandable to dinghy tow setups

10.  Exterior ladder

11.  Lounge TV with storage adjacent above

Includes the following exterior highlights, in addition to the specifications on our website page and brochure:

1.  183 cubic feet of exterior and basement storage

2.  100 gallon fuel capacity

3.  5.6 gallon LP capacity, used only for outdoor grilling as this is an all electric coach

4.  Aqua Hot 400 hydronic dual zone heating system with continuous hot water

5.  50 amp electrical service

6.  TrueAir Maximum Comfort air conditioner system with concealed cold air ducting for whisper quiet operation, three 13,500 BTU 3 cooling units with heat pumps

7.  Powered patio awning, 20 ft, with motion sensor and LED lighting

8.  Six AGM absorbed glass mat group 31 RV batteries

Missing an Option You're Looking For? We can add any additional options at our dealership, including satellite, solar, Nitrogen for your tires, and more!

At Lichtsinn RV our website has full video walkarounds on each RV, making it easy for you to purchase. On our website you can go for a virtual test drive, purchase your RV over the phone or the internet, and then take delivery at our dealership, which is only 1 Mile from Winnebago, Itasca, and Winnebago Touring Coach here in Forest City, Iowa!

What Our Customers Are Saying

Like most: "We purchased a 2012 Itasca Ellipse 42QD from Litchsinn on Oct. 7, 2011. Jason B., our salesman was extremely helpful, friendly, & an all around good person! He introduced us to Ron Litchsinn, who treated us like royalty. The entire staff at the dealership worked hard to make us feel comfortable and help us with any thing we wanted to know. We have called back to the dealership for help ... More » - Linda
More »
Location: Main
2020 40A Specifications
Sleeps 4
Slides 4
Length 41 ft 1 in
Ext Width 8 ft 6 in
Ext Height 12 ft 9 in
Int Height 7 ft
Interior Color Earthstone Gypsum with Briarwood High Gloss Cabinetry
Exterior Color Cool Lava Gray Premium Full Body Paint
Hitch Weight 15000 lbs
GVWR 38700 lbs
Cargo Capacity 5088 lbs
Fresh Water Capacity 85 gals
Grey Water Capacity 89 gals
Black Water Capacity 57 gals
Tire Size 22.5
Generator CumminsOnan 10,000 watt QuietDiesel
Fuel Type Diesel
Engine Cummins ISL 8.9L
Chassis Freightliner Maxum
Horsepower 450 hp
Fuel Capacity 100 gals
Wheelbase 276 in
Available Beds King
Torque 1250 ft-lb
Refrigerator Type Residential Stainless Steel French Door
Convection Cooking Yes
Cooktop Burners 2
Shower Size 30" x 41"
Number of Awnings 1
Axle Weight Front 14700 lbs
Axle Weight Rear 24000 lbs
LP Tank Capacity 5.6
Water Heater Type Continuous
AC BTU 40500 btu
Basement Storage 183 cu. ft.
TV Info LR 50" HDTV, Optional LR TV, BR 40" HDTV
Awning Info 20' Power
Washer/Dryer Available Yes
Gross Combined Weight 53700 lbs
Shower Type Shower w/Seat
Stock# 720057A
