Exterior Color:Brilliant Silver Premium Full Body Automotive Paint
-
Interior Color:Fusion with Smoke High Gloss Italian Tecnoform Cabinetry
-
Chassis:Mercedes-Benz Sprinter
-
Generator:CumminsOnan Clean Burning 2,500 Watt Microquiet LP
-
Cargo Capacity:1566 lbs
-
Miles:41457
-
Sleeps:3
Description
A Fuel Efficient 18-22 mpg Mercedes Benz, Compact Nimble Length, a Slideout, Dedicated Separate Dry Bath, and Certified Preowned! This is a great local trade, a 2019 Winnebago Era 70M, in which the previous owners were nonsmokers, and it comes backed not only with a clean vehicle history report, but the confidence of our certified preowned RV collection!
Contact us to schedule your LIVE interactive presentation today to see this RV LIVE in the comfort of your home or office!
Purchase with confidence and peace of mind! This RV is a certified preowned RV, providing Real Value with a sixty day Service Plan from the date of purchase! After passing a rigorous inspection, the plan provides major operating systems coverage to protect RVers, and is accepted anywhere in the U.S. or Canada. Once work is completed to your satisfaction, the Plan pays the service center directly. Plans are also extendable. See any sales consultant for details!
This coach is powered by the tried and true Mercedes Benz powertrain:
1. 3.0L V6 Mercedes Benz Turbo Diesel
2. 325 lb ft of torque or power
3. 188 horsepower
4. 5 Speed Automatic Transmission with grade braking capability
5. Factory installed tow package, 5,000 lb
Includes the following aftermarket installations:
1. Tire Pressure Monitoring System
2. Custom Flip up Counter in Galley
Includes the following factory installed options:
1. Polished Stainless Steel Rocker Panel Trim
2. Stylized Chrome Wheels
Includes the following exterior highlights, in addition to the specifications on our website page and brochure:
1. 24.5 gallon fuel capacity
2. 9.5 gallon LP capacity
3. Truma Combi Eco Plus hot water heater and furnace
4. 30 amp electrical service
5. 13,500 BTU high efficiency air conditioning system
6. 16 ft 4 in powered patio awning
7. Dual group 31 RV batteries
Missing an Option You're Looking For? We can add any additional options at our dealership, including satellite, solar, Nitrogen for your tires, and more!
At Lichtsinn RV our website has full video walkarounds on each RV, making it easy for you to purchase. On our website you can go for a virtual test drive, purchase your RV over the phone or the internet, and then take delivery at our dealership, which is only 1 Mile from the Winnebago factory here in Forest City, Iowa!

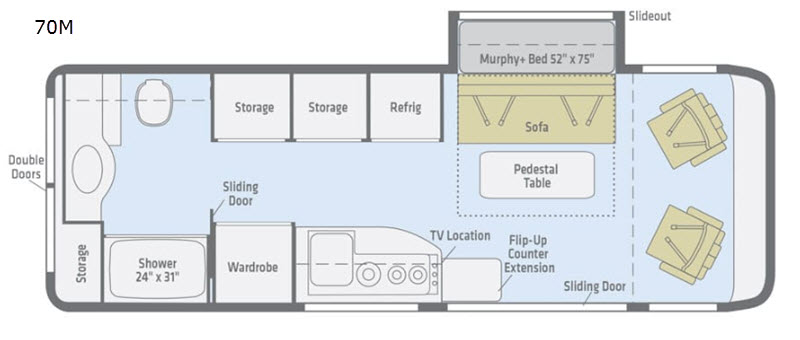

70M Floorplan
Specifications
Sleeps | 3 | Slides | 1 |
Length | 24 ft 3 in | Ext Width | 6 ft 5 in |
Ext Height | 9 ft 8 in | Int Height | 6 ft 3 in |
Interior Color | Fusion with Smoke High Gloss Italian Tecnoform Cabinetry | Exterior Color | Brilliant Silver Premium Full Body Automotive Paint |
Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
Cargo Capacity | 1566 lbs | Fresh Water Capacity | 47 gals |
Grey Water Capacity | 25 gals | Black Water Capacity | 22 gals |
Tire Size | 16.5 | Generator | CumminsOnan Clean Burning 2,500 Watt Microquiet LP |
Fuel Type | Diesel | Miles | 41457 |
Engine | Mercedes-Benz 3.0L Turbo Diesel | Chassis | Mercedes-Benz Sprinter |
Horsepower | 188 hp | Fuel Capacity | 24.5 gals |
Wheelbase | 170 in | Available Beds | Murphy |
Torque | 325 ft-lb | Refrigerator Type | Two Door Compressor Driven with Freezer |
Refrigerator Size | 6 cu ft | Convection Cooking | Yes |
Cooktop Burners | 3 | Shower Size | 24" x 31" |
Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
Axle Weight Rear | 7720 lbs | LP Tank Capacity | 9.5 gals |
Water Heater Capacity | 2.6 gal | Water Heater Type | LP or Electric |
AC BTU | 13500 btu | TV Info | 24" HDTV |
Awning Info | 16'4" Power w/LED Lighting | Gross Combined Weight | 15250 lbs |
Shower Type | Standard | Electrical Service | 30 amp |
VIN | WDAPF4CCXHP570202 |
ManuFacts
Features
Standard Features (2019)
Mercedes-Benz Sprinter Chassis
- 3.0L 6-cylinder, 188-hp, diesel engine, 5-speed automatic Tip Shift transmission, 220-amp. alternator
- 4-wheel ABS brakes
- Stainless steel wheel liners
- Trailer Hitch4 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
- 7-pin wiring connector
- Chassis ignition slide room lock system (70M)
Optional
- On-demand 4WD w/Hi/Lo Range (only available with Brilliant Silver exterior) (NA 70M) (Dealer Stock Only)
- Stylized chrome wheels
- Alcoa aluminum alloy wheels
Cab Conveniences
- Radio/Rearview Monitor System
- Chassis/coach battery radio power switch
- Ultraleather cab seats armrests, adjustable lumbar support, adjustable headrest, and slide/swivel/recline
- 3-point seat belts
- Dual airbags
- Cruise control
- Power steering w/tilt and telescoping wheel
- Power mirrors w/defrost and turn signal
- Power door locks w/remote
- Power windows
- 12-volt powerpoints
- Sunvisors
- Pleated, sliding front window blinds
- Folding privacy screens for cab door windows
- Appliqué package
- Keyless entry w/remote
- Light/rain sensor for automatic headlight dimming & wiper operation
- Collision prevention assist
- High-beam assist
- Lane keeping assist
Interior
- 24" HDTV
- OmniGo™ omni-directional, amplified HDTV antenna
- Continuous tracklighting w/dimmer switch
- MCD blackout roller shades
- Soft vinyl ceiling
- Tinted coach windows
- Skylight/roof vent (70M)
- Removable companion seats w/swivel and slide (70B, 70X)
- Removable pedestal table (70M)
- Touch screen systems monitor panel
- Multiplex lighted wall switches w/master light switch and control via Precision Plex app for Android/iOS
- Mirror
- USB charging points
Galley
- Flip-up countertop extension (70A, 70M)
- Corian® solid-surface countertop
- Decorative backsplash (70B, 70M)
- Microwave oven w/ touch control (70A)
- Microwave convection oven w/ touch control (NA 70A)
- 2-burner range top w/glass cover (70A)
- 3-burner range w/glass top and stainless steel sink (NA 70A)
- 2-door 6 cu. ft. compressor driven refrigerator/freezer (70A, 70B, 70M)
- Single door compressor driven refrigerator/freezer (70X)
- Stainless steel sink w/folding faucet and glass cover (70A)
- Bamboo sink cover and cutting board (NA 70A)
- Cold water purification system
- Spice rack (70M)
Bath
- Shower w/wall surround, 24" x 31" (70M)
- Dry bath (70M)
- Wet bath 24" x 43" (NA 70M)
- Corian solid-surface countertop w/sink (70M)
- Flexible showerhead
- Shower curtain (NA 70M)
- Textured glass shower door (70M)
- Toilet w/foot pedal and sprayer
- Skylight (70M)
- Tissue holder
- Towel bar (70M)
- Towel ring (70M)
- Stainless steel sink (NA 70M)
- Powered roof vent (NA 70M)
- Powered ventilator fan (70M)
- Deluxe powered ventilator fan w/rain cover (NA 70M)
- Removable clothing rod
- Medicine cabinet (70M)
- Bamboo shower mat
Bedroom
- Twin beds w/Flex Bed System (70A)
- 24" HDTV w/remote (70A)
- Wardrobe (70A, 70M)
- Murphy+ Bed (70M)
- Powered sofa/bed (70B, 70X)
- Deluxe sleep system (70A)
Exterior
- Sliding entrance door
- Side screen door
- Rear screen door (NA 70M)
- Powered patio awning w/LED lighting
- Slideout compartment tray (access from rear door) (70A)
- Porch light w/interior switch
- Running boards, rocker trim w/mud guard
- Rear mud guards
- Exterior speaker system
- Rear full-height storage compartment (70M)
- Below floor storage (70B)
Options
- Polished stainless steel rocker panel trim
- Bike rack (NA 70M)
- Luggage rack
- Ladder
Heating and Cooling
- 13,500 BTU low-profile high-efficiency roof air conditioner
- Truma Combi Eco Plus Heating System w/(2) 850-watt electric heating elements
Electrical System
- AC/DC load center/converter
- Auxiliary start circuit
- 2-deep cycle Group 31 batteries (AGM maintenance free)
- Coach battery disconnect system
- Dual-battery charge system
- 200-watt solar panel/battery charger
- 45-amp. converter/charger
- 30-amp. power cord
- Exterior TV jack
- Exterior AC receptacles
- Exterior DC receptacles (NA 70M)
- 2,500-watt Cummins Onan® MicroQuiet™ LP generator
- 1,000-watt Pure Sine Wave inverter
Plumbing System
- Exterior Service Center city water hookup/tank diverter valve, drainage valves, sewer hose (w/shut-off 70B, 70X) valve and exterior wash station w/pump switch
- TrueLevel™ holding tank monitoring system
- Winterization Package water heater bypass valve (NA 70M) and siphon tube
- On-demand water pump
- 12-volt macerator sewage pump (70B, 70X)
- Permanent-mount LP tank w/gauge
- LPG accessory connection
- Holding tank flushing system
Safety
- Child seat tether anchors (70B, 70X)
- LP, smoke, and carbon monoxide detectors
- 10 BC fire extinguisher
- Ground fault interrupter
- Daytime running lamps
- High-mount brake lamp
- Emergency flashlight
- First aid kit
Warranty
- 12-month/15,000-mile basic limited warranty
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
Save your favorite RVs as you browse. Begin with this one!
-
From Canada
Like most: "I can recommend your dealership to anyone, and I would buy from you again for sure if I needed a new Winnebago. Two things were important to me: Being as close to the factory as possible and a fair price....The treatment I received at your dealership was outstanding. The whole experience ... More » -
Happy RV'ers
We have been looking for a small, used class C motor home for over 5 years and have visited many dealerships in Arizona and around the Midwest and found Lichtsinn to be, hands down, the best experience we had shopping for our RV. Reed was very helpful in finding the exact vehicle we requested, Dan made ... More » -
Pet Friendly
Sales, Service, and Parts are all Excellent. The waiting area is very comfortable, especially when you have all day! Love that it's pet friendly! Everyone is always so nice!
Richard
White Hall, AR
Loading
We work with guests from all over North America - CLICK HERE to see a map of Lichtsinn RV owners across the continent.
Lichtsinn RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags and delivery fees. Manufacturer pictures, specifications and features may be used in place of actual RVs in our inventory. New inventory may be on order. Please contact us at 641-585-3213 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Our financing rates and terms change daily, and the rates and terms utilized in loan payment calculations are the average interest rates and terms written on loans over the past 30 days. Loan calculator examples supply an estimate of 1/3 down cash or trade equity applied to the loan balance in the calculator, which can be customized to each guest. No rate or term is an offer to contract and is illustrative in nature only. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. For your most competitive rate and term, see our business manager for qualification.
Lichtsinn RV has no surprise fees, dealer prep fees, or dealer admin fees. Our predelivery inspection completed by a certified RVTI technician and personalized educational orientation are included at no cost. The only incremental charge to all pricing is a standard, fixed $98 title administration fee.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
