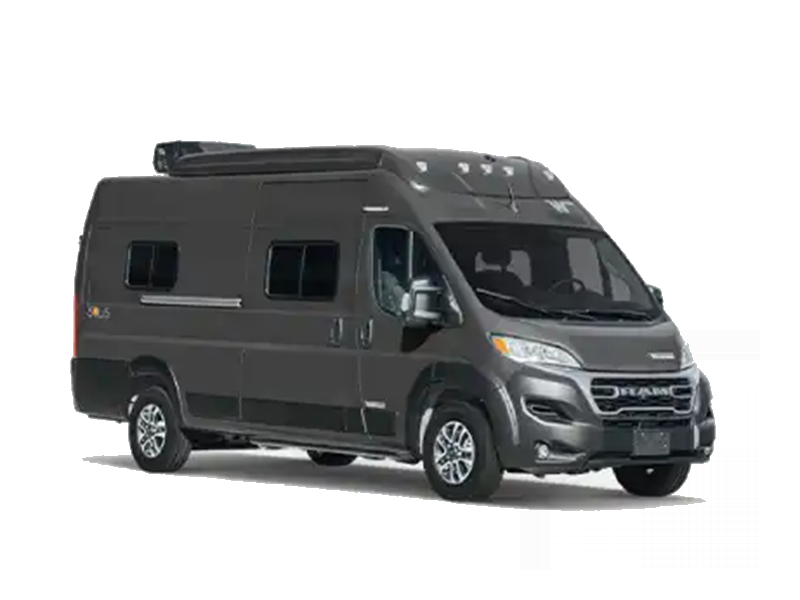

Winnebago Solis Motor Home Class B

Previous
Next
1 of 7

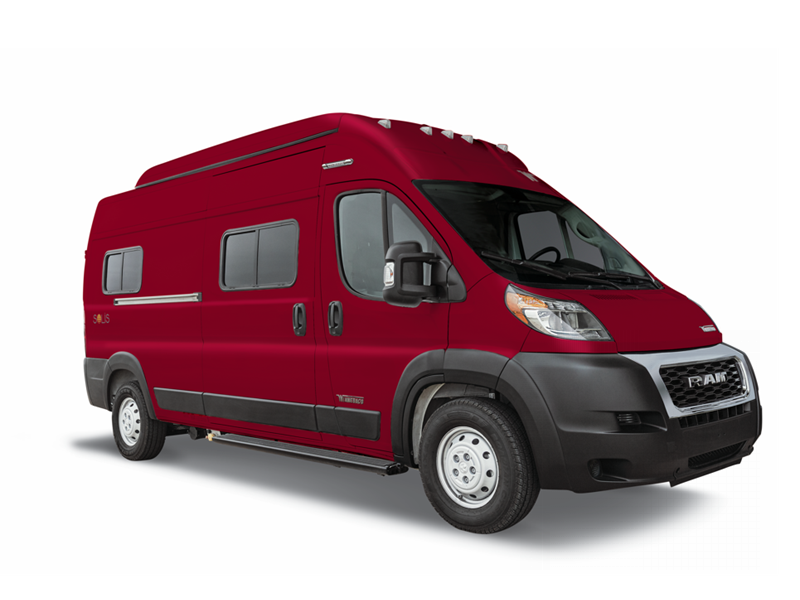

The Solis Class B gas motorhome by Winnebago offers an all-weather, versatile, and affordable way to travel across the country or county line!



Built on the fuel-efficient Ram ProMaster chassis with all-season insulation and plumbing, a space extending rear annex and a heated bathroom that doubles as a drying room for wet gear.  The unique fiberglass pop-top offers a FROLI sleep system with a loft for two people and panoramic views, the interior gives you a Murphy+Bed for versatile space, and the galley kitchen offers everything you will need to stay fed for whatever comes your way.



Why not adapt to any adventure when you own a Winnebago Solis Class B gas motorhome!

  • Specifications

    Sleeps 4
    Length 19 ft 6 in
    Ext Width 6 ft 8 in
    Ext Height 8 ft 11 in
    Int Height 6 ft 2 in
    Interior Color Nomad

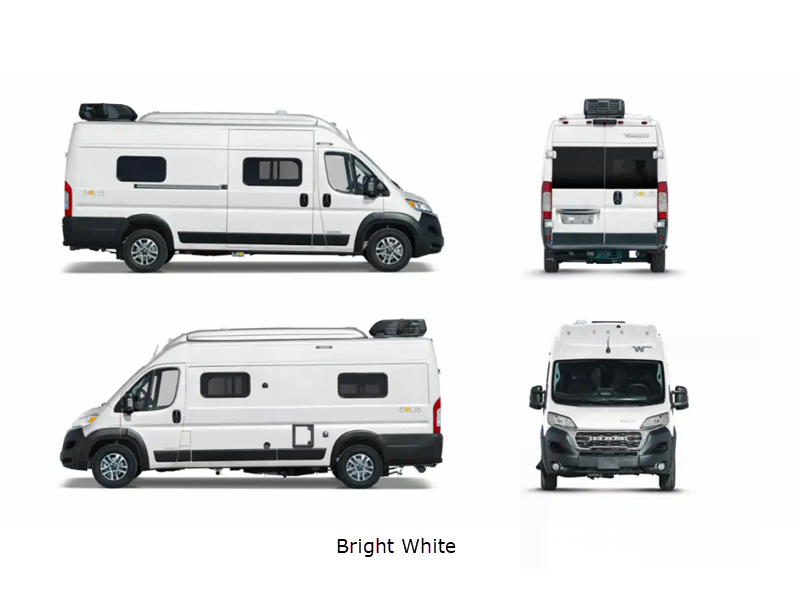

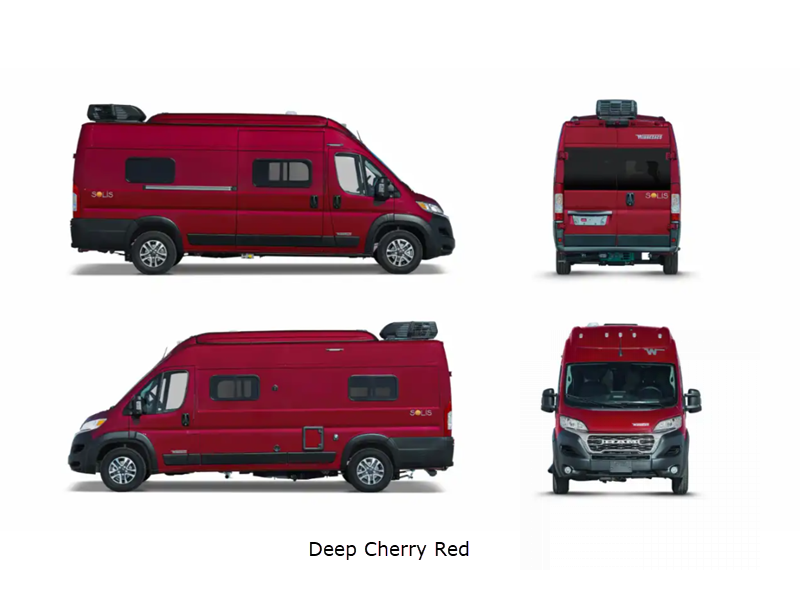

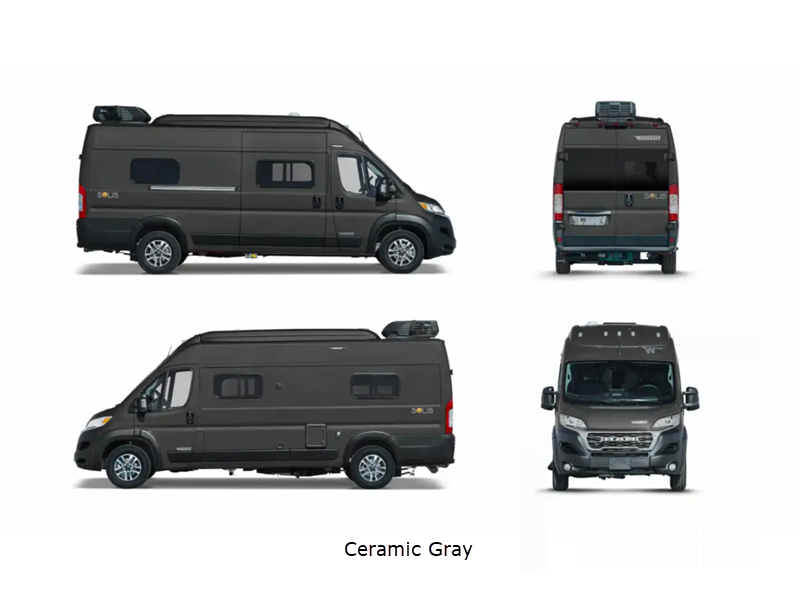

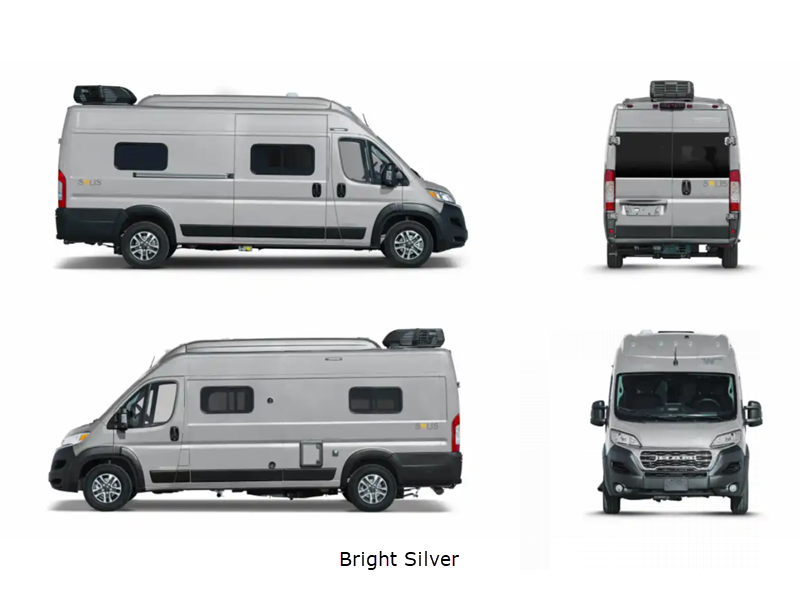

    Exterior Color Bright White, Deep Cherry
    Hitch Weight 3500 lbs
    Gross Weight 8900 lbs
    Fresh Water Capacity 21 gals
    Grey Water Capacity 20 gals
    Fuel Type Gasoline
    Engine 3.6L V6
    Chassis Ram ProMaster
    Horsepower 280 hp
    Fuel Capacity 24 gals
    Wheelbase 159 in
    Available Beds Murphy
    Refrigerator Type Single Door Compressor Driven with Freezer
    Cooktop Burners 2
    Axle Weight Front 4630 lbs
    Axle Weight Rear 5291 lbs
    LP Tank Capacity 6 gals
    Water Heater Capacity 2.6 gal
    Gross Combined Weight 11500 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

    Similar Floorplans

Solis Features:

Standard Features (2020)



Chassis

  • Ram ProMaster® 280-hp, 3.6L V6 gas engine, 6-speed automatic 62TE transmission, 180-amp. alternator 
  • 4-wheel ABS brakes
  • Trailer Hitch 3,500-lb. drawbar/350-lb. maximum vertical tongue weight
  • 4-pin wiring connector

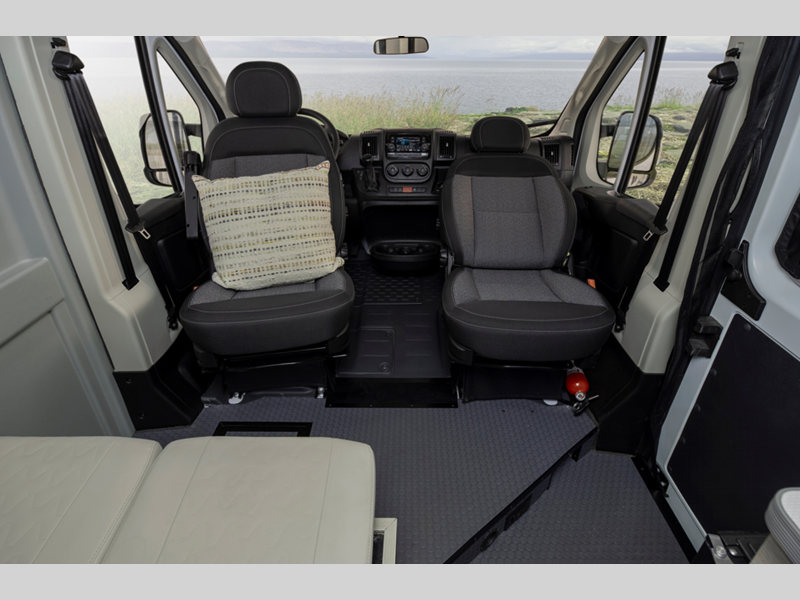

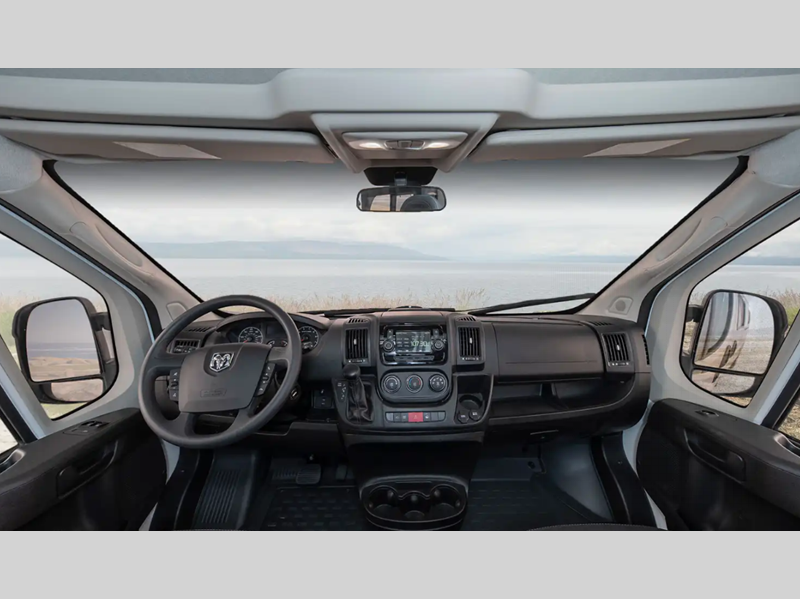

Cab Conveniences

  • Radio/Rearview Monitor System 5" LCD color touch screen, steering wheel controls, color rear camera, USB ports
  • Cab seats armrests, adjustable headrest, and slide/swivel/recline
  • Airbags driver and passenger
  • Cruise control
  • 3-point seat belts
  • Power assist steering
  • Manual adjust mirrors
  • Power door locks w/remote
  • Power windows
  • 12-volt powerpoints
  • Sunvisors
  • Front and cab window privacy panels

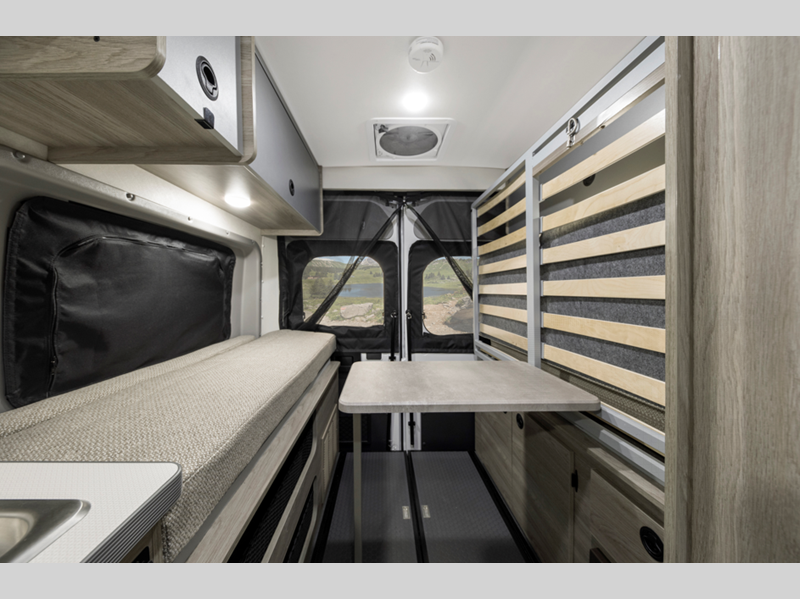

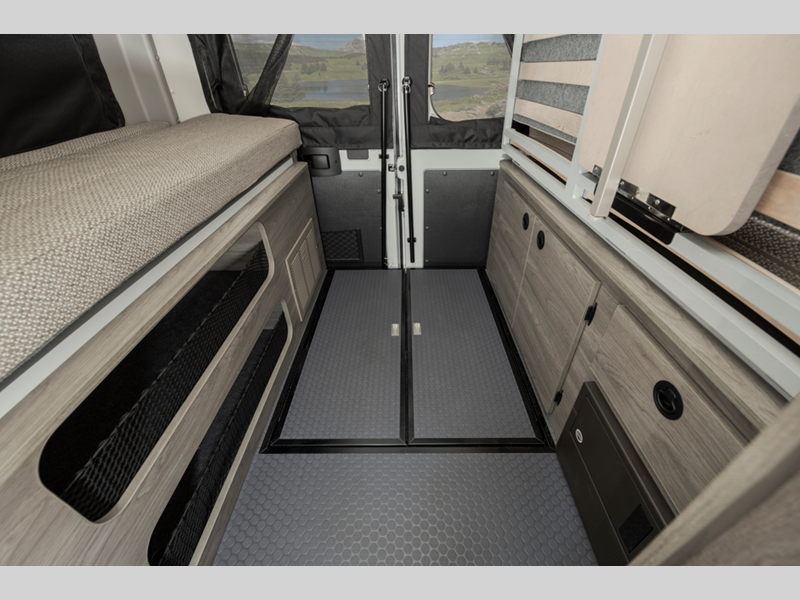

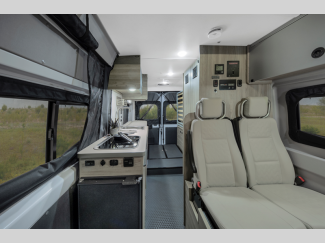

Interior

  • LED ceiling lights
  • Tinted coach windows

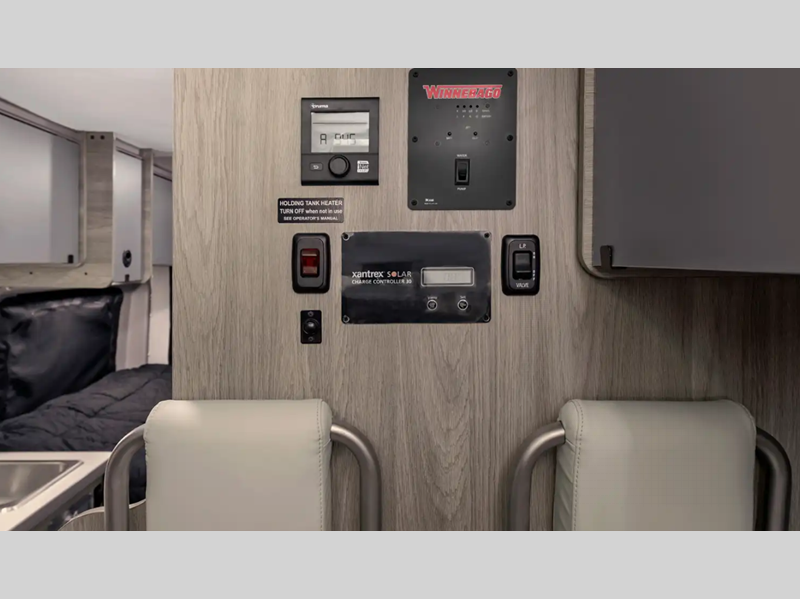

  • Systems monitor panel
  • Roof vent (lounge)
  • Removable pedestal table

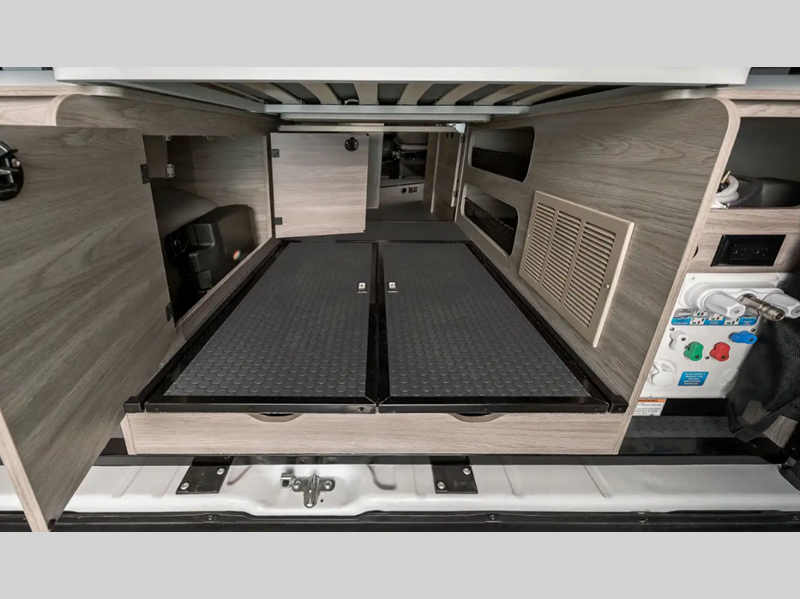

  • Below floor storage (lounge, bedroom)
  • Reading lights
  • Roof wiring access port
  • Dinette seating w/3-point seat belts
  • USB charging ports
  • Zipped window coverings
  • Heavy duty vinyl flooring throughout

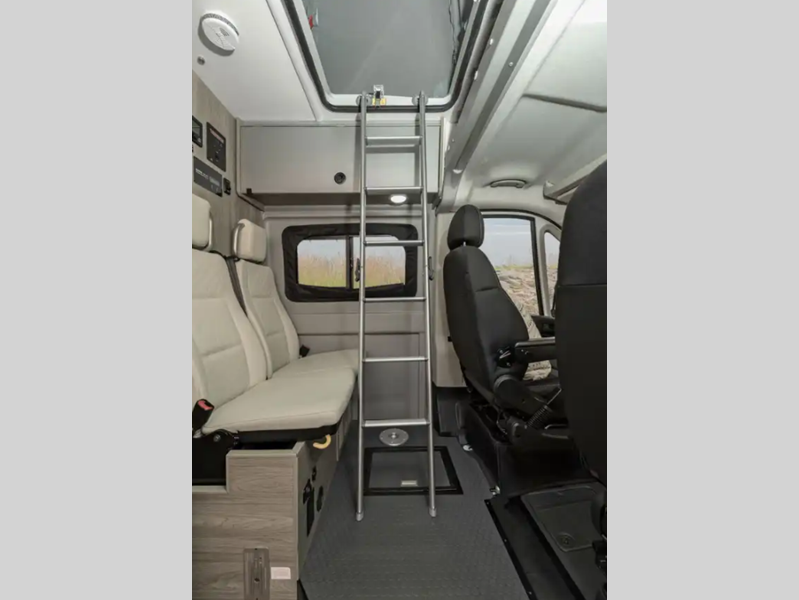

  • Ladder

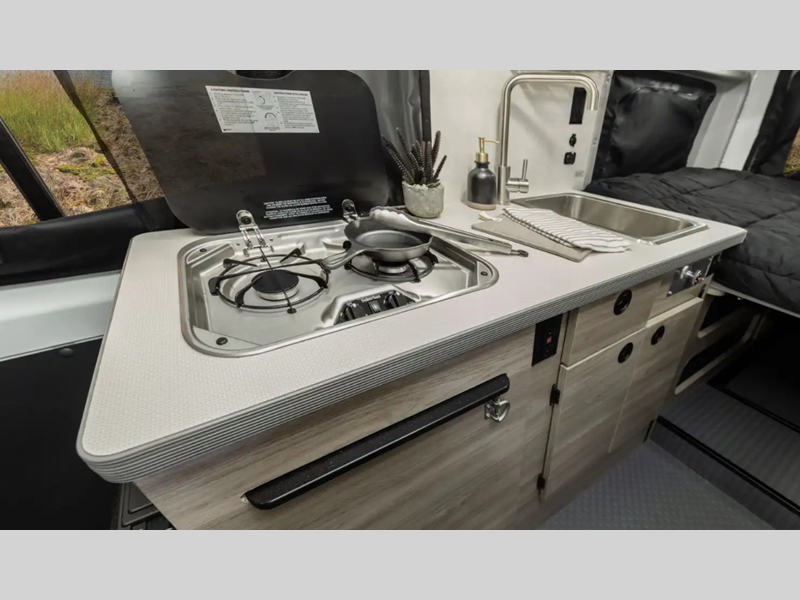

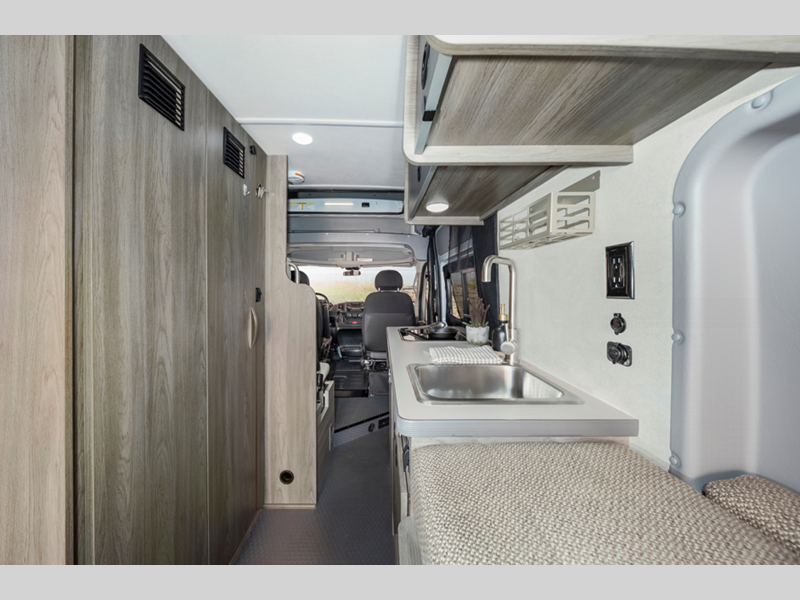

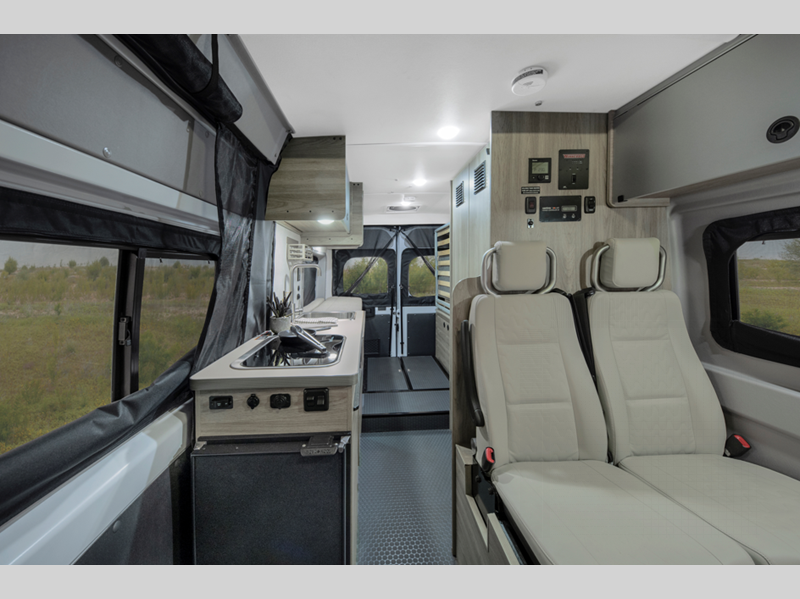

Galley

  • Laminate countertop
  • Pull-out countertop extension
  • 2-burner range top w/glass cover
  • Single door compressor-driven refrigerator/freezer 12-volt
  • Stainless steel sink
  • Spice Rack

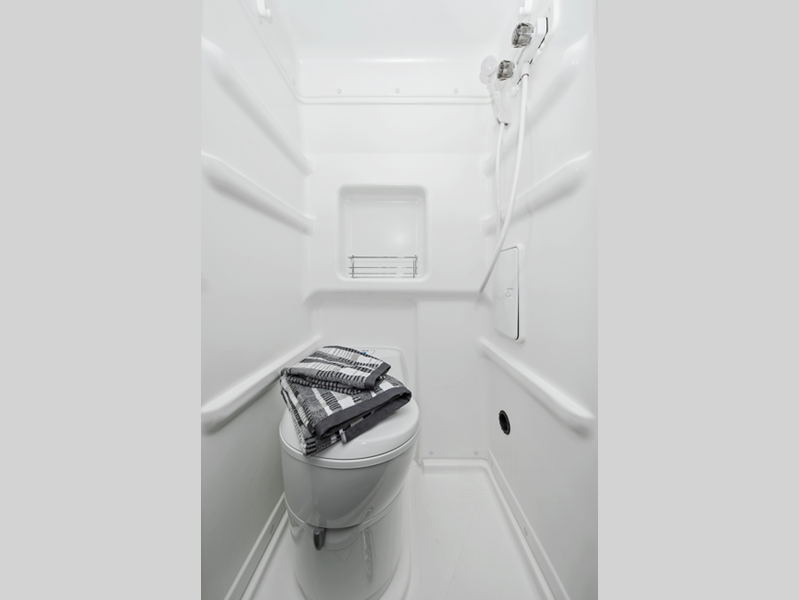

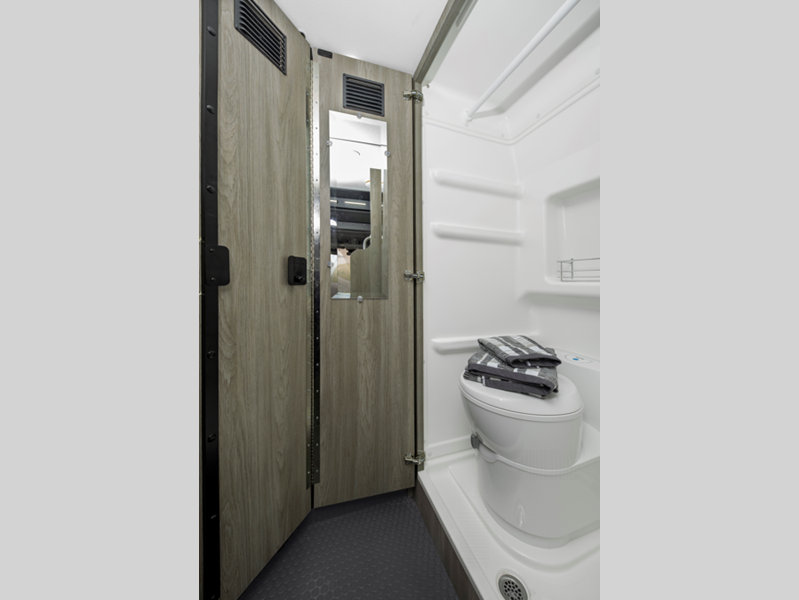

Bath

  • Flexible shower head
  • Mirror
  • Removable clothes rod
  • Swiveling cassette toilet
  • Shower curtain
  • Shower w/wall surround
  • Tissue holder

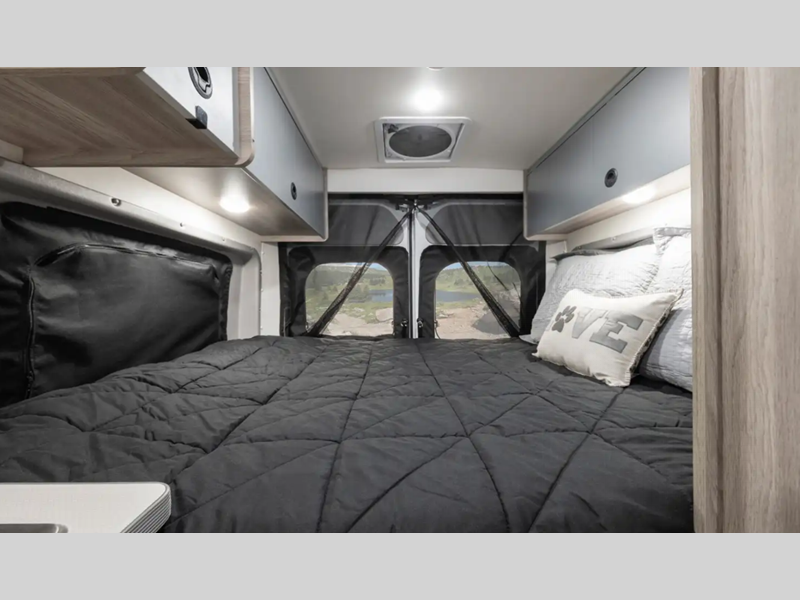

Bedroom

  • Double bed w/access to storage below and mattress cover
  • Deluxe powered ventilator fan

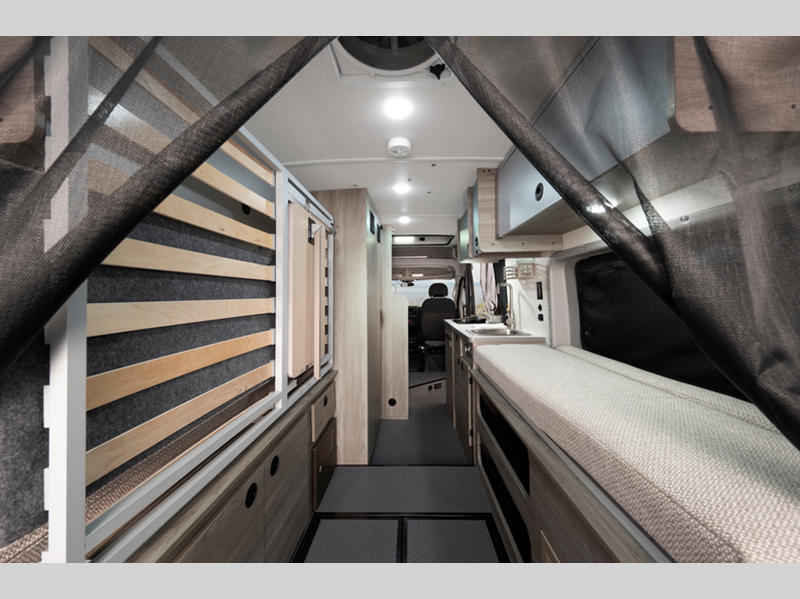

  • Slat bed system
  • Movable table

Bedroom Optional Equipment

  • Sofa/bed w/two 3-point seat belts

Exterior

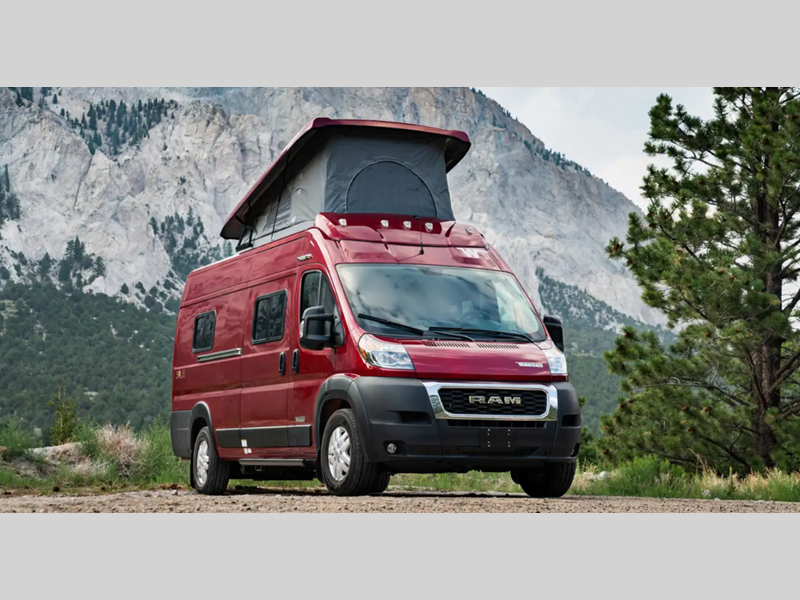

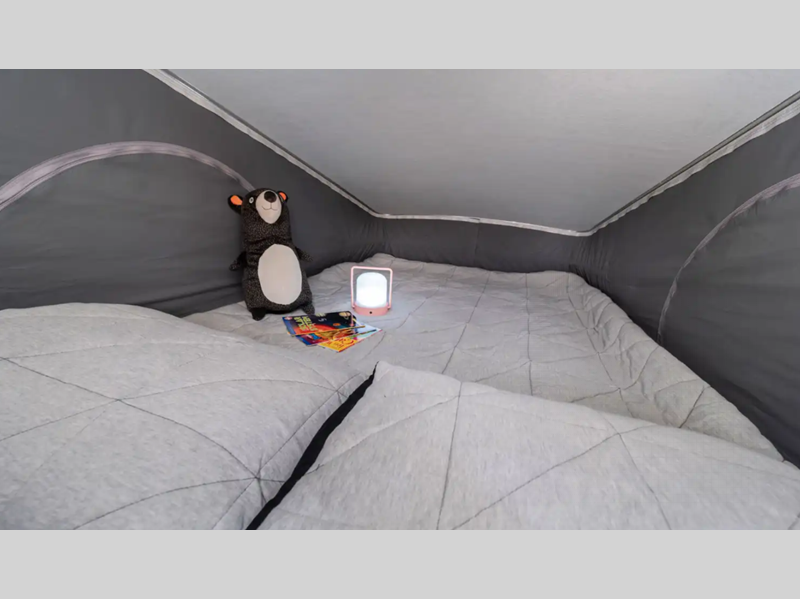

  • Pop-top sleeping area w/FROLI® sleep system
  • Porch light w/interior switch
  • Driver and passenger side service light
  • Assist bar
  • Side screen door
  • Rear screen door
  • Aluminum running board w/logoed tread and pet loop attachment

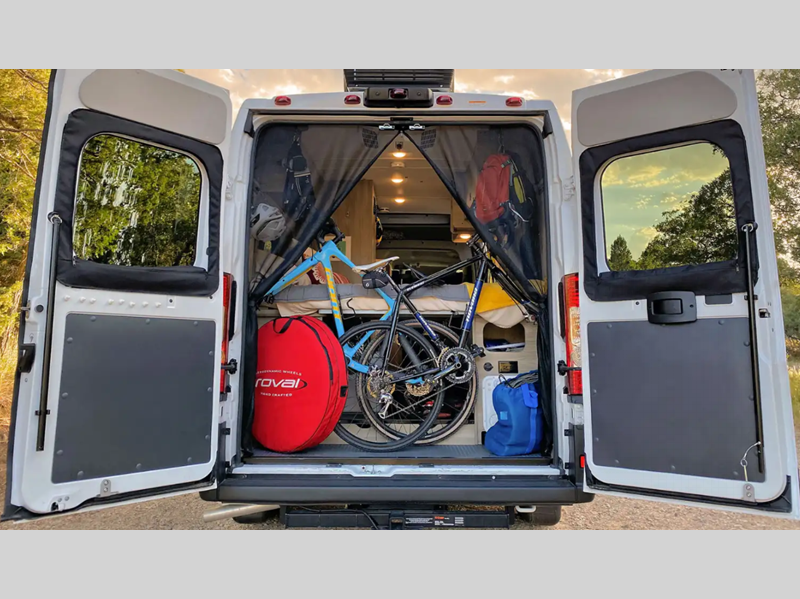

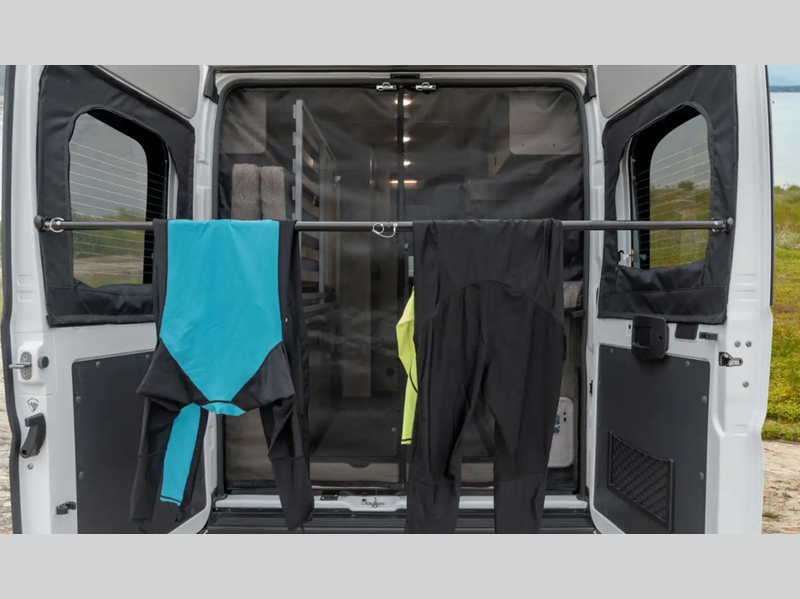

  • Rod and privacy screen (provided for rear annex)

Heating & Cooling System

  • Truma Combi Eco Heating System

Electrical System

  • AC/DC load center, 45-amp. converter/charger
  • Auxiliary start circuit
  • 2 deep-cycle Group 31 batteries (AGM maintenance-free)
  • Coach battery disconnect system
  • Automatic dual-battery charge control
  • 30-amp. power cord
  • 220-watt flexible surface solar panel w/controller

Plumbing System

  • Exterior wash station (located behind passenger seat)
  • 10' sewer hose
  • On-demand water pump
  • Permanent-mount LP tank w/gauge
  • Fresh water site glass
  • Heated drainage system

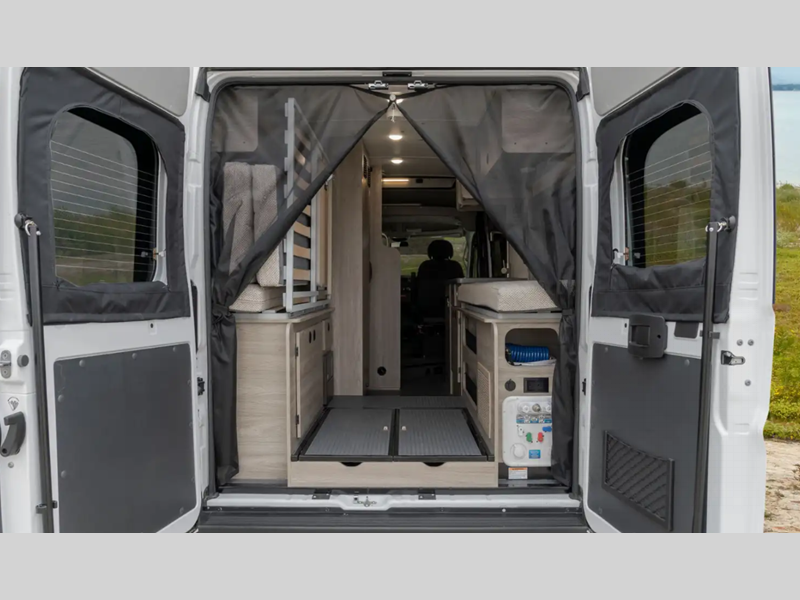

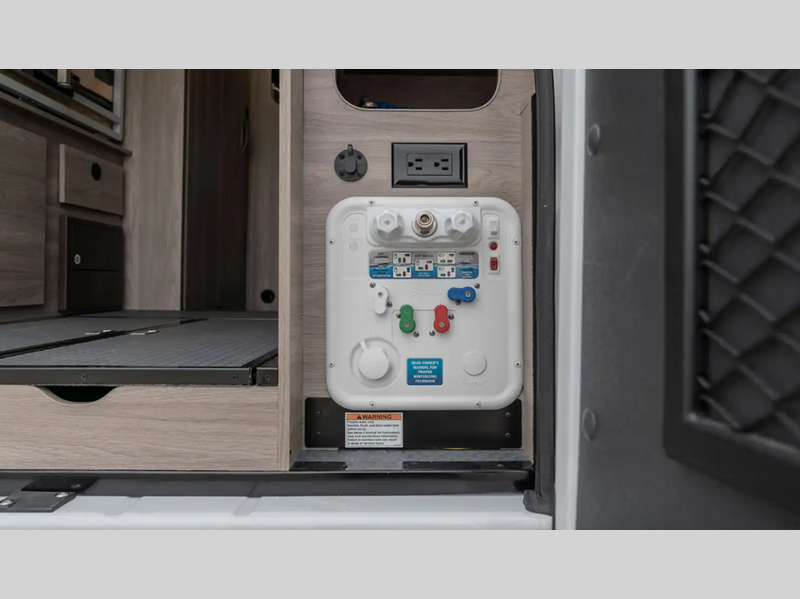

  • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door)
  • Hot water purge valve system

Safety

  • LP, smoke, and carbon monoxide detectors
  • 10 BC fire extinguisher
  • Ground fault interrupter
  • Fog lamps

Warranty

  • 12-month/15,000-mile basic warranty

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

Winnebago Logo
Winnebago Industries, Inc., headquartered in Forest City, Iowa, is the leading United States (U.S.) manufacturer of recreation vehicles (RVs), used primarily for leisure travel and outdoor recreational activities.  Winnebago builds quality motor homes, travel trailers and fifth wheel products under the Winnebago®, Itasca®, ERA™ and SunnyBrook® brand names.

The company was founded in 1958 and has been producing motor homes since 1966, and now has re-entered the towable RV market since 2011 began. Winnebago Industries continues into the future with steady growth; commitment to quality; extensive research and testing, and a fantastic lineup of RV products!

The Company markets its recreational vehicles on a wholesale basis to a diversified dealer organization located throughout the U.S., and Canada.

Mission Statement at Winnebago Industries - "Moving forward with innovation and quality."  Winnebago remains committed to providing its customers high quality, great value, efficient design, and eye-catching style in all the recreational vehicles it produces.
